Bird | 2009 alpha

bird

Bird – Proto alpha – 01/2009

Bird 2009 alpha 001
Bird 2009 alpha 002
Bird 2009 alpha 004
Bird 2009 alpha 005
Bird 2009 alpha 006
Bird 2009 alpha 007

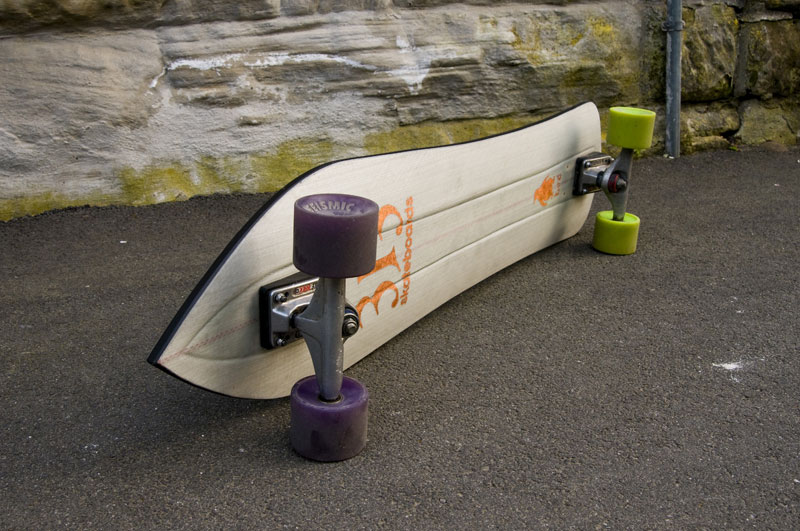

Bird 2009 alpha 008
Bird 2009 alpha 009
Bird 2009 alpha 010
Bird 2009 alpha 011
Bird 2009 alpha 012
Bird 2009 alpha 013
Bird 2009 alpha 014
Bird 2009 alpha 015
Bird 2009 alpha 016
Bird 2009 alpha 017
Bird 2009 alpha 018
Bird 2009 alpha 019
Bird 2009 alpha 020
Bird 2009 alpha 021
Bird 2009 alpha 022

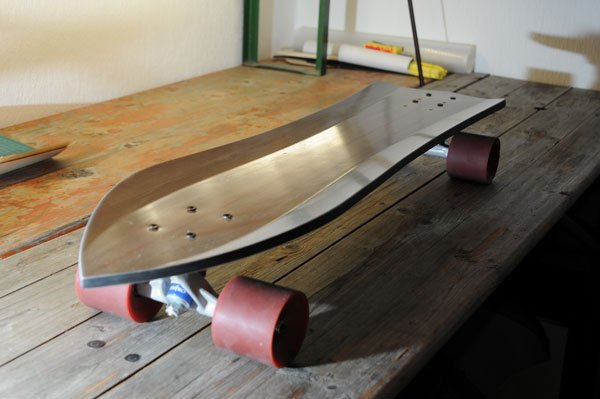

Bird 2009 alpha 023
Bird 2009 alpha 024
Bird 2009 alpha 025
Bird 2009 alpha 026
Bird 2009 alpha 027
Bird 2009 alpha 028
Bird 2009 alpha 029
Bird 2009 alpha 030
Bird 2009 alpha 031





Citycruiser/technical downhill Prototyp


Concave: Progressiv / Gaspedal



Schaumkern 10 mm, umwickelter Stringer
ABS Kante, Multiplex Inserts



Lagenaufbau: 6-achs Glas / Carbon
Oberfläche: PU-Lack, klar
Hitzegehärtet



Grafik: Blattkupfer


1100 gramm (2,42 lbs)
Länge: 940 mm (37")
Breite: 230 mm (9")
Radstand: 590/635 mm (23/25")






Citycruiser/ technical downhill prototype


Concave: progressive / gaspedal



Core: airex 10mm, wrapped stringer
ABS edge, plywood inserts


Layup: 6-ax glass / carbon
Topcoat: PU-varnish, clear
Heatcured



Graphic: copper leaf metal



1100 gramm (2,42 lbs)

Length: 940 mm (37")
 Width: 230 mm (9")
 Wheelbase: 590/635 mm (23/25")















*
*
