Vector Tight / Hybrid – Proto final – 04/2010

Vector 2010 gamma 001
Vector 2010 gamma 002
Vector 2010 gamma 003
Vector 2010 gamma 004
Vector 2010 gamma 005
Vector 2010 gamma 006
Vector 2010 gamma 007
Vector 2010 gamma 008
Vector 2010 gamma 009
Vector 2010 gamma 010
Vector 2010 gamma 011
Vector 2010 gamma 012
Vector 2010 gamma 013
Vector 2010 gamma 014
Vector 2010 gamma 015
Vector 2010 gamma 016
Vector 2010 gamma 017
Vector 2010 gamma 018
Vector 2010 gamma 019
Vector 2010 gamma 020





Slalom-Prototyp: Final

Konzept: Verena Völkel, Peter Scheerer
CAD/CAM: Verena Völkel
Konstruktion: Peter Scheerer
Fertigung: Peter Scheerer, Verena Völkel

Concave: Progressiv / Gaspedal

Camber – Kicktail

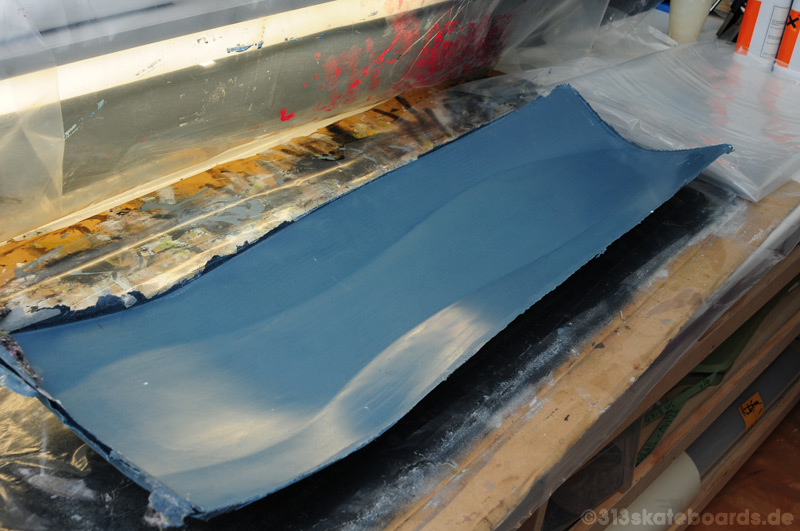

Schaumkern 10 mm
Tailkern: Spezialschaum, HPL

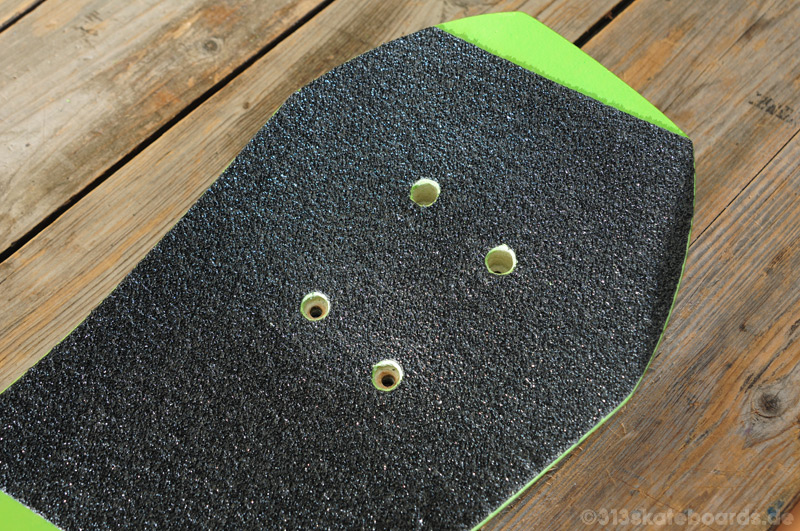

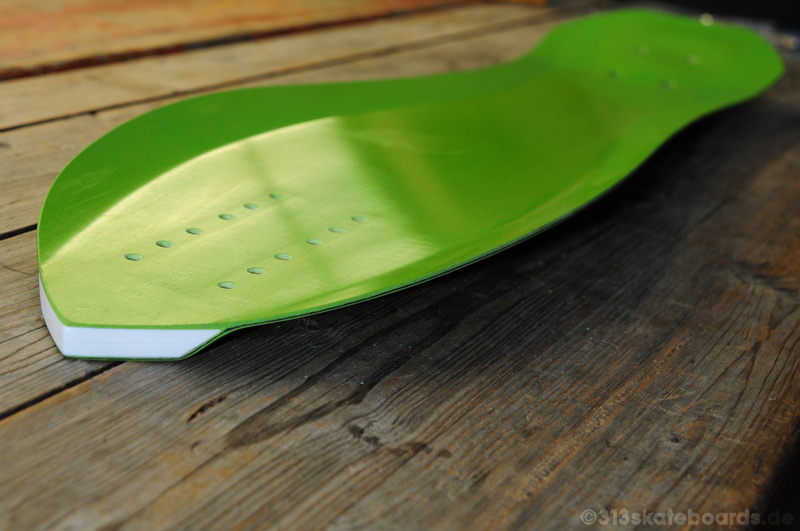

ABS Nose, Multiplex Inserts

Lagenaufbau: Glas / Carbon
Oberfläche: PU-Lack, klar
Hitzegehärtet

Hybrid:

820 gramm (1,8 lbs)
Länge: 820 mm (32")
Breite: 215 mm (8,5")
Radstand: 505/526/547 mm (19,75/20,5"/21,25")

Tight:
780 gramm (1,7 lbs)
Länge: 790 mm (31")
Breite: 215 mm (8,5")
Radstand: 484/505/526 mm (19/19,75/20,5")


Slalom prototype: Final

Concept: Verena Völkel, Peter Scheerer
CAD/CAM: Verena Völkel
Construction: Peter Scheerer, Verena Völkel
Manufacturing: Peter Scheerer, Verena Völkel

Concave: progressive / Gaspedal
Camber - kicktail

Foamcore 10 mm
Tailcore: special foam, HPL
ABS nose, plywood inserts

Layup: glass / carbon
Topcoat: PU-varnish, clear
Heatcured

Hybrid:
820 gramm (1,8 lbs)
Length: 820 mm (32")
Width: 215 mm (8,5")
Wheelbase: 505/526/547 mm (19,75/20,5"/21,25")

Tight:
780 gramm (1,7 lbs)
Length: 790 mm (31")
Width: 215 mm (8,5")
Wheelbase: 484/505/526 mm (19/19,75/20,5")















*
*
